LED产品

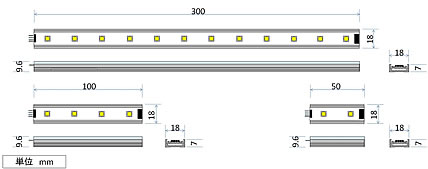

LED Slim Bar
- E&MLED Slim Bar
| Product Name | LED Slim Bar（①300㎜/②100㎜/③50㎜） |
| Color | 2500/2800/3500/4200/5500K |
| Size (length x width x thickness) mm | ①300x18x10㎜/②100x18 x 10㎜/③50x18x10㎜ |
| Input voltage (DCV) | DC24V |
| Consumed power (W) | ①3.6W/pc/②1.2W/pc/③0.6W/pc |
| Waterproof standard | ― |
| Others | ― |

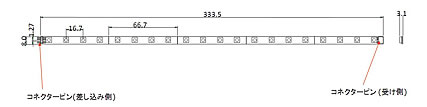

LED Light Bar
- E&MLED Light Bar
| Product Name | LED Light Bar |
| Color | 2500/2800/3500/4200/5500K |
| Size (length x width x thickness) mm | 333.5ｘ8.0ｘ3.1㎜ |
| Input voltage (DCV) | DC24V |
| Consumed power (W) | 6W/本 |
| Waterproof standard | ― |
| Others | Length adjustable |

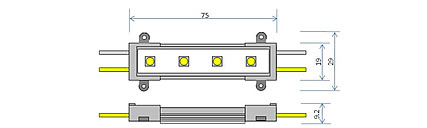

Neo Power Beam
- E&MNeo Power Beam
| Product Name | Neo Power Beam |
| Color | 2500/2800/3500/4200/5500K |
| Size (length x width x thickness) mm | 75ｘ29ｘ9.2㎜ |
| Input voltage (DCV) | DC24V |
| Consumed power (W) | 1.2W |
| Waterproof standard | IP65 |
| Others | ― |

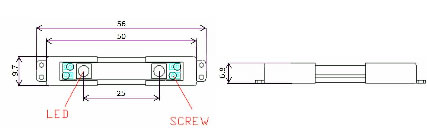

MCS
- E&MMCS
| Product Name | MCS |
| Color | 2500/2800/3500/4200/5500K |
| Size (length x width x thickness) mm | 56x9.7x6.8㎜ |
| Input voltage (DCV) | DC12V（single lamp type）/DC24V (double lamps type) |
| Consumed power (W) | 0.3W/pc (single lamp type) / 0.6W/pc (double lamps type) |
| Waterproof standard | IP65 |
| Others | ― |

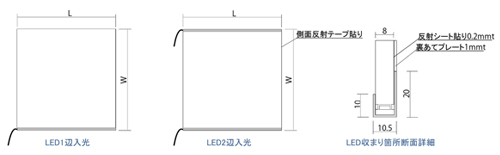

LED PANEL
- E&MLED PANEL
| Product Name | LED PANEL |
| Color | Optional |
| Size (length x width x thickness) mm | Optional |
| Input voltage (DCV) | DC24V |
| Consumed power (W) | Depend on size |
| Waterproof standard | ― |
| Others | ― |

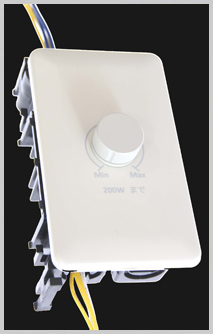

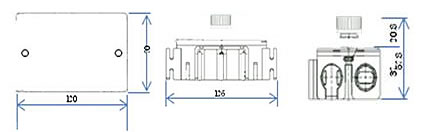

调光器
- E&M调光器
| Product Name | Dimmer control |
| Color | Body color:silver |
| Size (length x width x thickness) mm | 126ｘ70ｘ57.8㎜ |
| Input voltage (DCV) | DC24V |
| Consumed power (W) | 200W |
| Waterproof standard | ①Slim Bar / ②Light Bar / ③Neo Power Beam |
| Others | ①300㎜ product:55pcs / ②33pcs / ③166pcs |

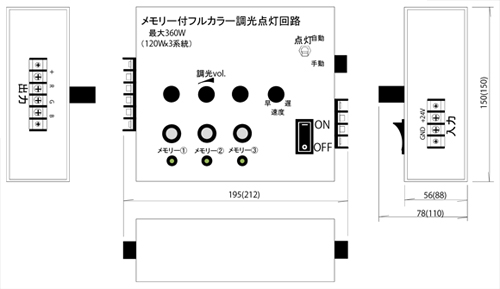

RGB控制器
- RGB控制器
| Product Name | RGB controller |
| Content | ①360W/②1080W |
| Size (length x width x thickness) mm | ①195 x 150 x 78㎜/ ②212 x 150 x 110㎜ |
| Input voltage (DCV) | DC24V |
| Waterproof standard | Indoor |

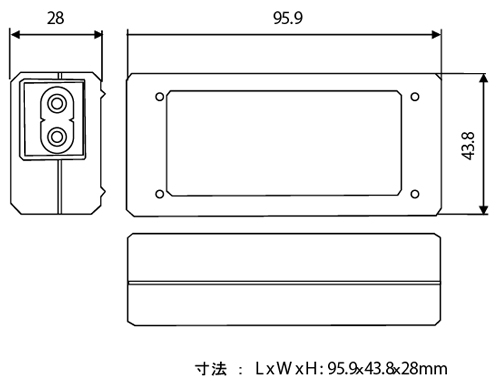

电源24V/36W
- E&M电源24V/36W
| Product Name | PWR:24V/36W |
| Consumed power (W) | 36W |
| Input voltage (ACV) | AC100V |
| Output voltage (DCV) | DC24V |
| Size (length x width x thickness) mm | 95.9ｘ43.8ｘ28㎜ |
| Distance to LED | Maximum 3M |
| Others | Maximum consumed power standard 30.6W (=36W x 85％) |
电源24V/50W
- E&M电源24V/50W
| Product Name | PWR:24V/50W |
| Consumed power (W) | 50W |
| Input voltage (ACV) | AC100V |
| Output voltage (DCV) | DC24V |
| Size (length x width x thickness) mm | 174ｘ62ｘ35㎜ |
| Distance to LED | Maximum 15M |
| Others | Maximum consumed power standard 42.5W (=50W x 85％) |

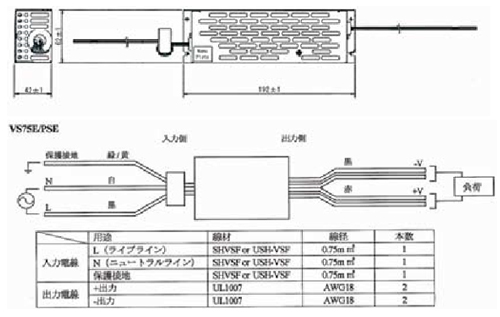

电源24V/75W
- E&M电源24V/75W
| Product Name | PWR:24V/75W |
| Consumed power (W) | 75W |
| Input voltage (ACV) | AC100V |
| Output voltage (DCV) | DC24V |
| Size (length x width x thickness) mm | 192ｘ62ｘ42㎜ |
| Distance to LED | Maximum 15M |
| Others | Maximum consumed power standard 63.75W (=75W x 85％) |

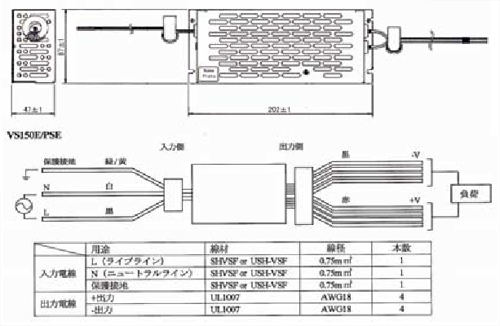

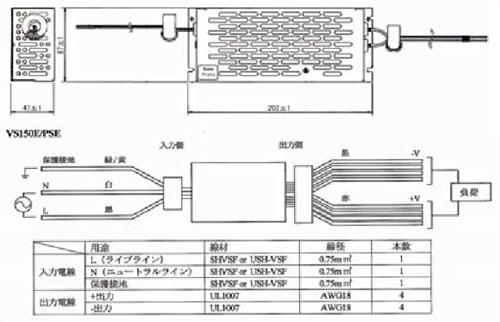

电源24V/150W
- E&M电源24V/150W
| Product Name | PWR:24V/150W |
| Consumed power (W) | 150W |
| Input voltage (ACV) | AC100V |
| Output voltage (DCV) | DC24V |
| Size (length x width x thickness) mm | 202x87x47㎜ |
| Distance to LED | Maximum 15M |
| Others | Maximum consumed power standard 127,5W (=150W x 85％) |
电源24V/320W
- E&M电源24V/320W
| Product Name | PWR:24V/320W |
| Size (length x width x thickness) mm | 252ｘ90ｘ43.8 |
| Input voltage (DCV) | AC100V |
| Consumed power (W) | DC24V |
| Waterproof standard | Maximum 15M |
| Others | Maximum consumed power standard 272.0W (=320W x 85％) |
