Solar Wafer
Silicon single crystal wafer for solar cell use
-
- E&M Silicon single crystal wafer for solar cell use's feature
Wafer,as a basis of solar cell,is produced by thinly slicing silicon ingot.
We supply wafer with excellent quality.
Moreover,we supply not only bare wafer but also processed wafer.
-Tex processed wafer (Wafer conducted with Tex process.Tex size can be discussed)
-Diffusion wafer(diffused wafer.PSG film removed)
Product | Silicon single crystal wafer for solar cell use |
Conductivity | P/N |
Dimension | 125mm / 156mm |
Thickness | 180um~ |
Resistivity | 0.5~3Ohm.cm / 3-6Ohm.cm |
Solar Cell

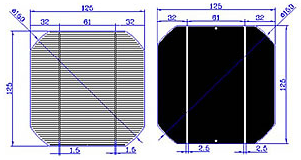

125mm Single crystalline solar cell
- E&M 125mm Single crystalline solar cell's feature
Item | 125mm Single crystalline solar cell |
Dimension | 125mm × 125mm ± 0.5mm |
Diameter | φ150mm ± 0.5mm |
Thickness | 200um ± 30um |
Front | 1.5 mm busbar (silver) |
Silicon Nitride antireflection coating | |
Back | 2.5mm continuous soldering pads(silver/aluminium) |
Back surface field (aluminium) |
156mm Multi crystalline solar cel (2bus bar)
- E&M 156mm Multi crystalline solar cel (2bus bar)'s feature
Item | 156mm Multi crystalline solar cel (2bus bar) |
Dimension | 156mm × 156mm ± 0.5mm |
Thickness | 200um ± 30um |
Front | 2.0 ± 0.1mm busbar (silver) |
Silicon Nitride antireflection coating | |
Back | 3.0mm continuous soldering pads(silver) |
Back surface field (aluminium) |
156mm Single crystalline solar cell (2bus bar)
- E&M 156mm Single crystalline solar cell (2bus bar)'s feature
Item | 156mm Single crystalline solar cell (2bus bar) |
Dimension | 156mm × 156mm ± 0.5mm |
Diameter | φ200mm ± 0.5mm |
Thickness | 200um ± 30um |
Front | 2.0 ± 0.1mm busbar (silver) |
Silicon Nitride antireflection coating | |
Back | 3.0mm continuous soldering pads(silver) |
Back surface field (aluminium) |
Cell semi-finish item (AR coat finish)
Solar Module
Solar Module
- Formed by solar cells
- Solar module is Formed
by solar cells
which are built into frame
